A planer sander is a high-efficiency woodworking machine that combines planing (thicknessing) and sanding (polishing) in one unit. It is an upgraded wide-belt sander, widely used in solid wood furniture, flooring, doors, and panel industries。
- The up & down double-sided sanding production line integrates automatic connecting units, integrated CNC control system, standard automation modules and flexible production cells into one complete production line.
- Advanced technology enables mass production and doubles manufacturers’ overall production efficiency.
- Single feeding realizes double-side sanding for wood panels, drastically cuts labor cost; its working efficiency is 1.5 times higher than separate single machine operation. Automated sanding lines represent the future development trend of wood sanding technology.
PERFORMANCE FEATURE
R-R-R-R1300 planer is a sanding tool specially made for solid wood panel. The equipment shaper shaft adopts eight-blade spiral shaper shaft, which has the characteristics of high precision, low noise and good stability.
The planer blade adopts the most common 15mm×15mm Germany-made tiger head blade in the world at present, which has the characteristics of large planing capacity and wear resistance, and the transmission speed adopts frequency converter, which has strong stability and anti-interference ability in global service for big international brands.
The equipment support adopts cast iron structure to stabilize pressure and ensure the precision and effect of sanding.
The main electric appliances are original Zhengtai brand, which can ensure the stability of the whole machine.

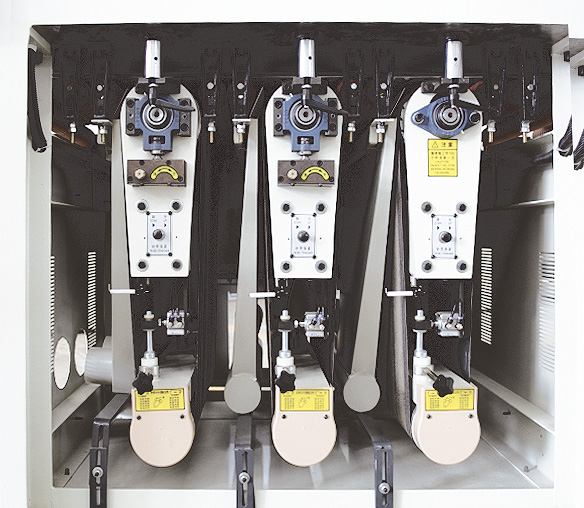

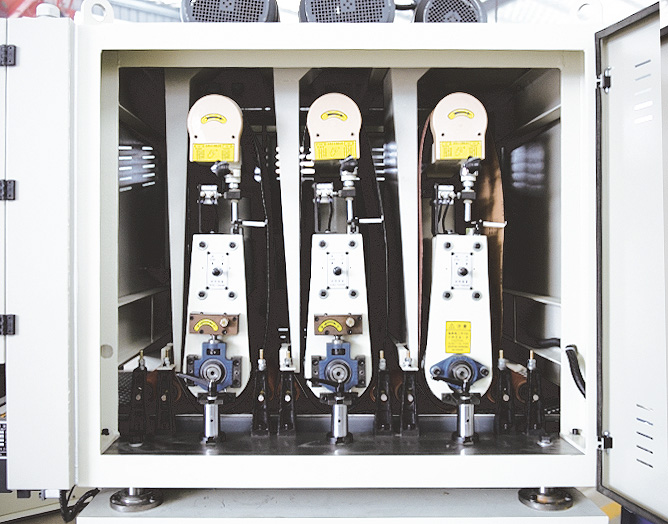

Adopt the technology of imported planer knife roller, fixed thickness roller and soft rubber roller (or combination sand rack), planing and then polishing, high efficiency and energy saving;
Casting stop device is adopted to avoid the plate rebound injury in the process of processing.
TECHNICAL PARAMETER

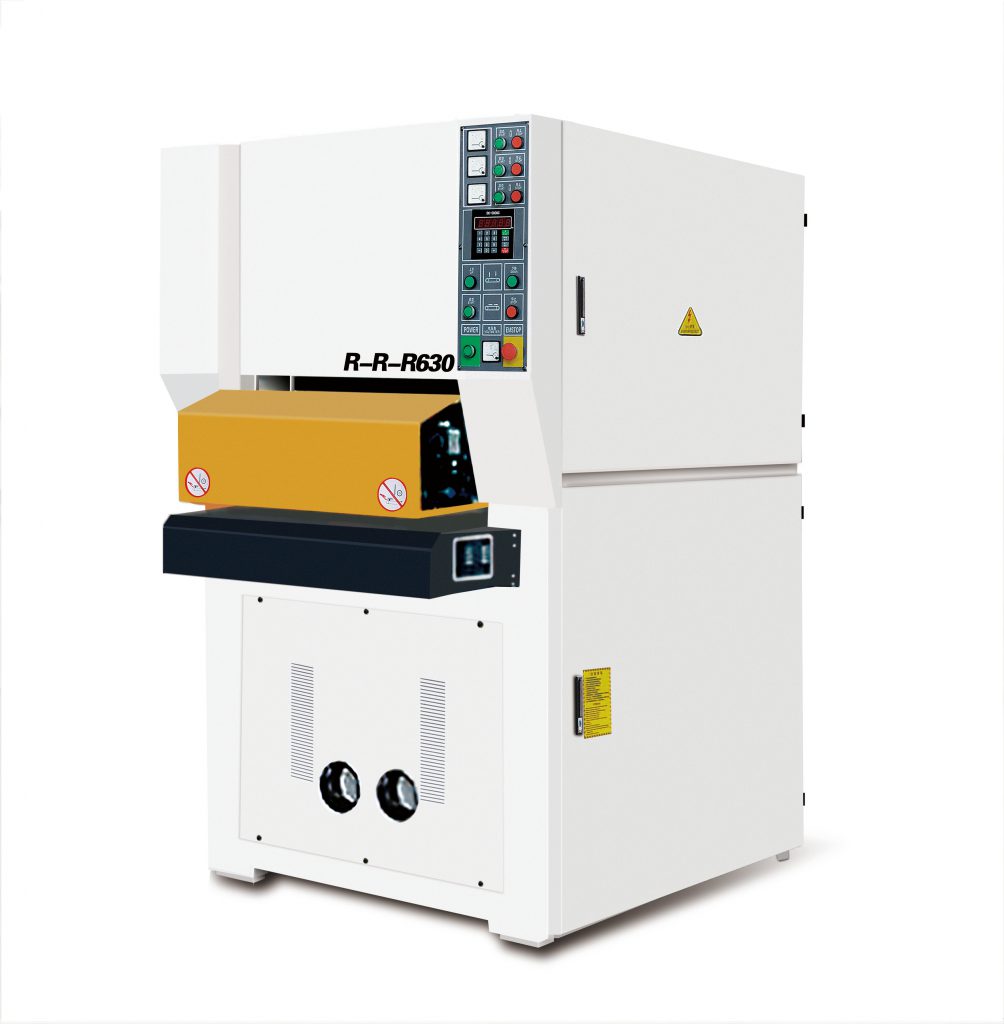

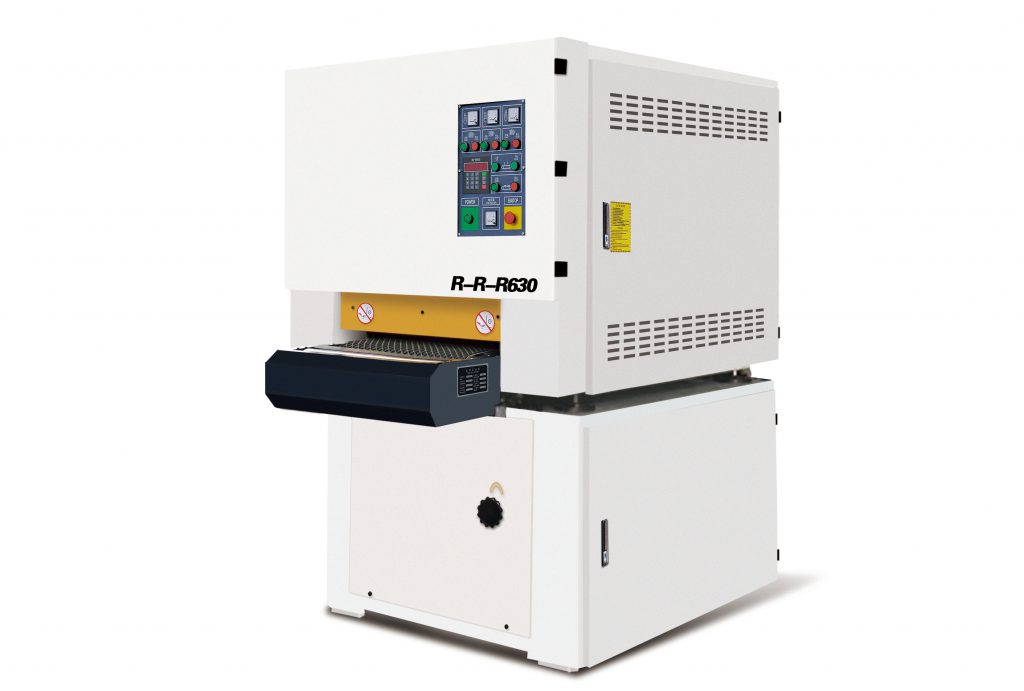

| Model | R-R-R630 |
|---|---|
| Max working width | 630mm |
| The shortest length of processing | 300mm |
| Maximum processing thickness | 200mm |
| Conveyor speed | 6-30m/min |
| Total power | 31.37Kw |
| The first motor power sander | 11Kw |
| Second sand shelf motor power | 11Kw |
| Third sand shelf motor power | 7.5Kw |
| Conveyor belt motor power | 1.5Kw |
| Lifting motor power | 0.37Kw |
| The first sand shelf planing roller diameter | 127mm |
| Second sand rack cots diameter | 190mm |
| The third sand shelf cots diameter | 190mm |
| Abrasive belt size | 650×1920mm |
| Working pressure | 0.6Mpa |
| Dust collection | 8000m³/h |
| Outline dimension | 2350×1300×2200mm |
| Weight | 2500kg |
