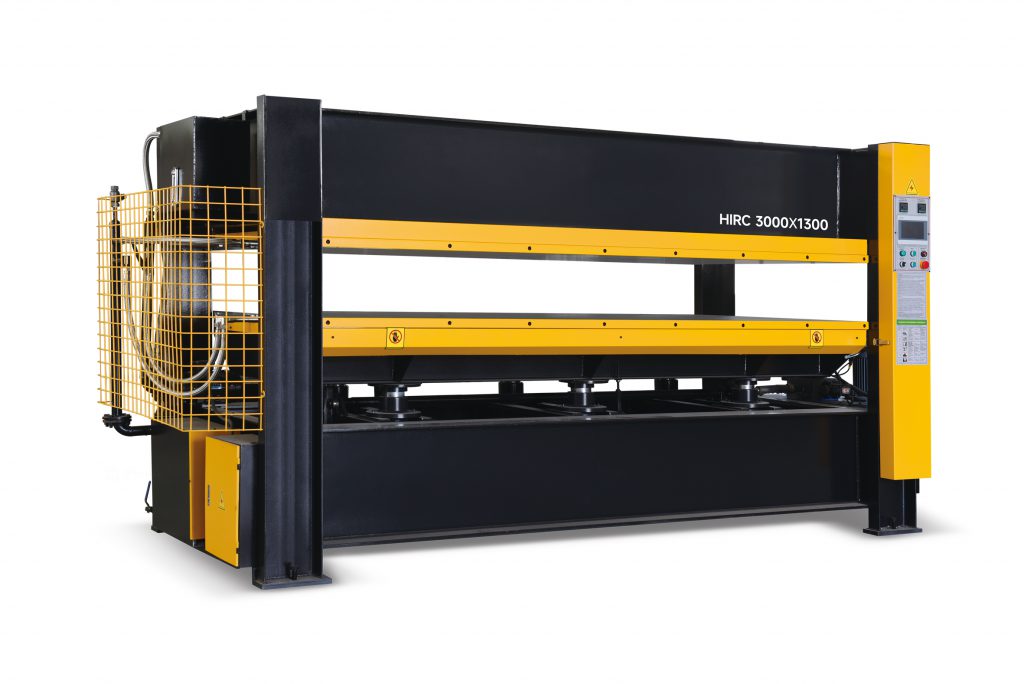

Hot Press Machine HIRC 3000*1300 1 layer
This HIRC 3000×1300 woodworking hot press is a core piece of equipment in furniture and panel processing. It achieves bonding, curing, forming, and shaping of materials through the combined action of high temperature and high pressure, with a wide range of applications:
? Core Applications in Woodworking
- Veneer/Overlay Pressing on PanelsThis is its most common use case. It hot-presses wood veneer, melamine paper, PVC film, decorative fabric, and other materials onto the surface of wood-based panels (blockboard, MDF, particleboard, etc.) to produce aesthetically pleasing and wear-resistant decorative panels. These are widely used in cabinet doors, tabletops, wall panels, and other components.The hot press accelerates adhesive curing, ensuring bubble-free, flat lamination and significantly improving surface quality and production efficiency.
- Laminating and Assembly of Furniture ComponentsIt is used for joining and pressing solid wood or panel furniture parts, such as:
- Solid wood panel joining: Bonding short wood pieces into large tabletops or cabinet doors to prevent cracking and warping.
- Door/door panel lamination: Pressing the core and face layers of solid wood composite doors and molded doors to ensure flatness, dimensional stability, and structural strength.
- Plywood manufacturing: Pressing glued veneers into plywood sheets, a critical process in wood-based panel production.
- Panel Straightening and CorrectionFor warped or deformed panels, the hot press can restore flatness through heat and pressure, reducing waste in subsequent processing—especially useful for solid wood panels or moisture-affected wood-based panels.
- Other Extended ApplicationsThanks to its large platen size (3000×1300mm) and stable pressure, it is also suitable for:
- Laminating aluminum honeycomb panels and composite materials (e.g., honeycomb core doors for door factories).
- Hot forming of building and decorative materials.
- Pressing some composite and insulation boards.
? Key Advantages
- High Efficiency: High temperature accelerates adhesive curing, drastically shortening pressing cycles.
- Strong Bonding: Uniform pressure ensures even adhesive distribution, resulting in far stronger bonds than cold pressing processes.
- Superior Flatness: Consistent pressure eliminates bulges and warping, leading to higher finished product rates.
| Parameter | Specification | Parameter | Specification |
|---|---|---|---|
| Nominal Total Pressure | 1200 kN | Rated Oil Pressure | 21 MPa |
| No. of Heating Plates | 2 sets, 2500×1300×42 mm | Cylinder Stroke | 300 mm |
| Unit Surface Pressure | 3.69 kgf/cm² | Max. Temperature | 150 °C |
| Cylinders (Qty & Dia.) | 6 pcs, Ø100 mm | Hydraulic Power | 3 kW (6-pole motor) |
| Closing Speed | 30 mm/s | Thermal Oil Power | 1.5 kW |
| Heating Method | Electric Heating Thermal Oil (EHTO) | Heating Power | 27 kW |
| Platen Opening Method | Electric | Overall Dimensions (L×W×H) | 3900 × 1650 × 2000 mm |
| No. of Working Layers | 1 layer | Net Weight (N.W.) | ~5600 kg |
| Heating Plate Spacing | 300 mm | – | – |
